Powder Coating:

Beyond Color—Choosing the Right Texture and Gloss

At Doing Metal, we’ve spent 10 years perfecting the art of the "Shield." While most clients know they want a specific RAL color, the real magic happens when you choose the right texture and gloss level. These factors determine how your part handles fingerprints, scratches, and harsh sunlight.

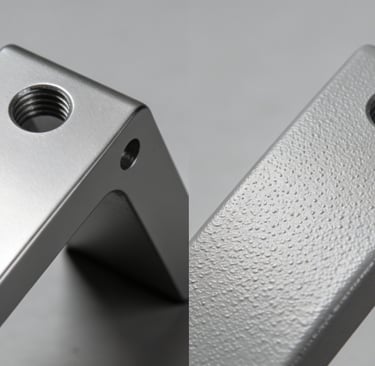

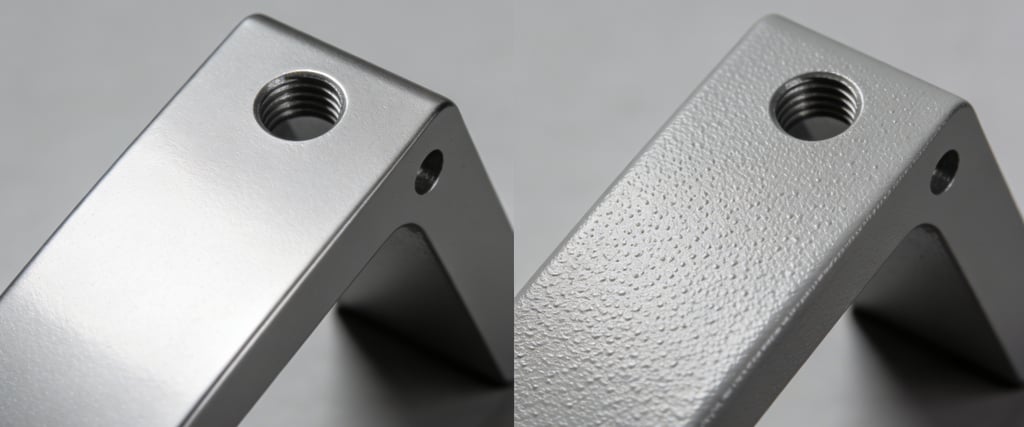

1. Texture: Smooth vs. Wrinkled (Sand-Grain)

The texture of your powder coat changes the "feel" and the "toughness" of the surface.

• Smooth Finish: * The Look: Sleek, modern, and easy to wipe down.

  • Best For: Medical equipment, library furniture, and indoor electronics.

  • The Trade-off: It shows fingerprints and minor scratches more easily than textured versions.

• Wrinkled / Sand-Grain Texture:

  • The Look: A rugged, matte, non-slip surface that feels like fine sandpaper.

  • Best For: Livestock feeding equipment, heavy-duty brackets, and outdoor enclosures.

  • The Advantage: It is the king of "hiding." It masks minor metal imperfections and resists visible scratching during transit or heavy use.

2. Gloss Levels: From Matte to High-Gloss

Gloss is measured by how much light reflects off the surface.

• Matte (0-10% Gloss): Absorbs light. It looks sophisticated and "stealthy." Ideal for military-grade or high-end architectural parts.

• Satin/Semi-Gloss (35-70% Gloss): The "sweet spot" for most B2B projects. It has a slight sheen but is very forgiving with maintenance.

• High-Gloss (80%+ Gloss): Shines like a new car. It makes colors "pop" but requires frequent cleaning to look its best.

3. The RAL Color System: Universal Language

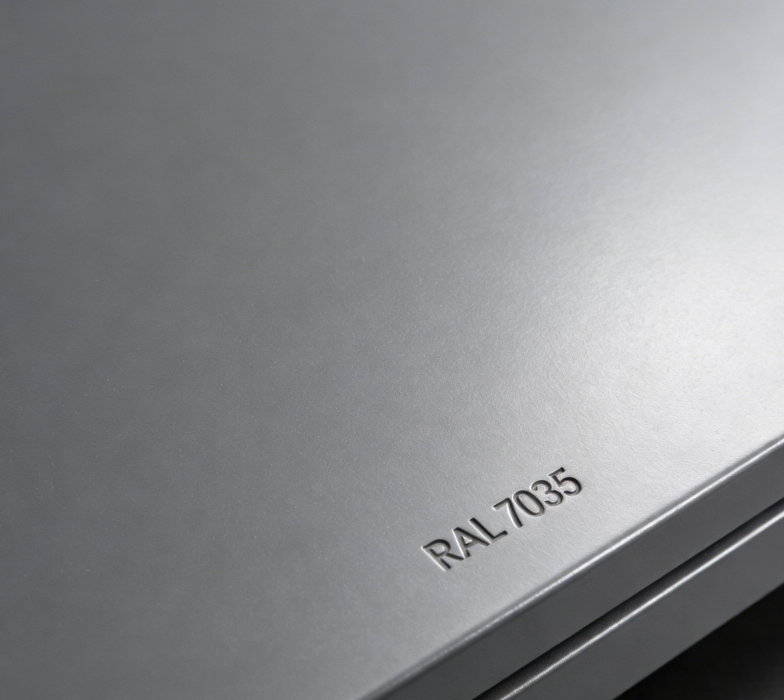

We work with the RAL Color Chart, the international standard for powder coating. Whether your brand requires RAL 7035 (Light Grey) or RAL 5010 (Gentian Blue), using RAL codes ensures that the parts we manufacture in Ningbo will perfectly match your assembly line in Europe, the US, or Australia.

Real-World Case: The Outdoor Power Cabinet

A client was designing electrical enclosures for a seaside location. They originally wanted a High-Gloss White smooth finish.

• Our Consultation: We advised against high-gloss because the salt air and sun would cause visible "chalking" and highlight any scratches from maintenance tools.

• The Solution: We switched to a RAL 7035 Grey with a Sand-Grain Texture.

• The Result: The textured finish effectively hid the dust and minor scuffs from the technicians' tools, while the light grey color reduced heat absorption from the sun, keeping the internal electronics cooler.

Why Choose Doing Metal for Powder Coating?

With our TRUMPF laser precision, we ensure that your parts have the perfect edge for powder adhesion. We also offer:

• Precision Masking: We protect your threaded holes and critical dimensions so the 100-micron coating doesn't interfere with your assembly.

• Batch Consistency: Whether you order 10 or 1,000 pieces, our 10 years of experience ensures the color and texture stay identical.
